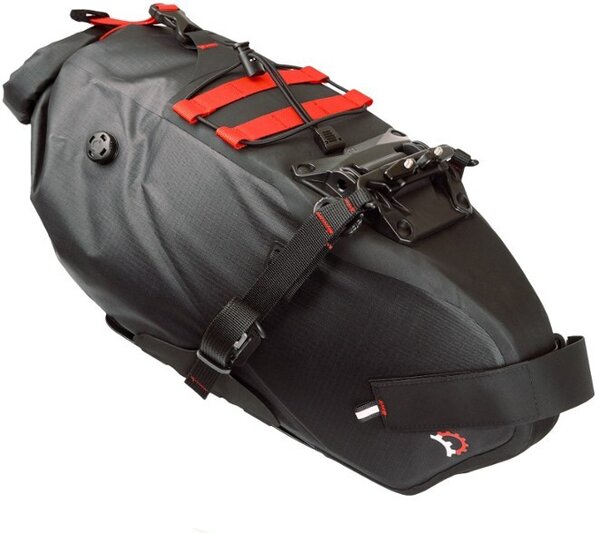

Revelate Designs SPINELOCK SEAT BAG 16L BLACK

Revelate Designs SPINELOCK SEAT BAG 16L BLACK
$185.00
Please select options

Details

We set out to create the most stable, low profile mounted, feature loaded, waterproof seat bag available. The Spinelock™ seat bag checks all the boxes.

The Spinelock integrates user tested and approved features like a one-way air purge valve, rear light slots, loop and bungee deck, and an external plastic bottom with a new patented attachment system. Stability was the driving element in the design process. If you want something you can pack and forget, the Spinelock is your seat bag.

There are two size options, neither of which sacrifice features for capacity. The Spinelock 16L is our largest seat bag and is perfect for longer trips, cold weather adventures, or if you just like to pack extra. If you have minimal tire clearance or are going on warm weather adventures we recommend checking out the Spinelock 10L.

How it works:

The Spinelock stability system consists of three components: the saddle clamp, seat bag mounted "Spine" baseplate, and pin.

A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form the pin interface. Twin forged upper arms, fastened by Torx-25 bolts, rotate into position above the saddle rails for easy mounting.

Resembling a spine ramp familiar to skateboarders, the "Spine" baseplate is made of an impact resistant UV-stabilized nylon and is integrated to the seat bag surface. The plate features two mounting positions to accommodate seatpost setback and saddle adjustments. To connect the bag, you simply line up your selected mounting position to the seat mounted clamp and slide the pin through the aligned holes. Attaching the side compression straps to the wings of the clamp fixes the pin in place and you're ready to ride!

Innovative Spinelock stability system completely eliminates side to side sway

Waterproof construction

Two mounting positions to accommodate seatpost setback and saddle adjustments.

A low profile, high strength, forged aluminum clamp works in combination with precision IGUS bushings to form a quick-release pin interface making bag removal a cinch.

Quick release bag from bike

Internal HDPE plastic structure

One way, low profile, air purge valve

Carbon seatpost friendly

Hypalon slots for a rear light

Top mounted external webbing and bungee for additional storage

Protective external plastic bottom frame sheet

Active cam buckles prevent side straps from slipping on rough terrain.

Part Numbers

UPC MPN Store SKU
857192003544 RD-101-499 REV3993716K
